Home Products Construction company lift truck

Masonry hydraulic lifting platform (crawler type)

All Product Categories

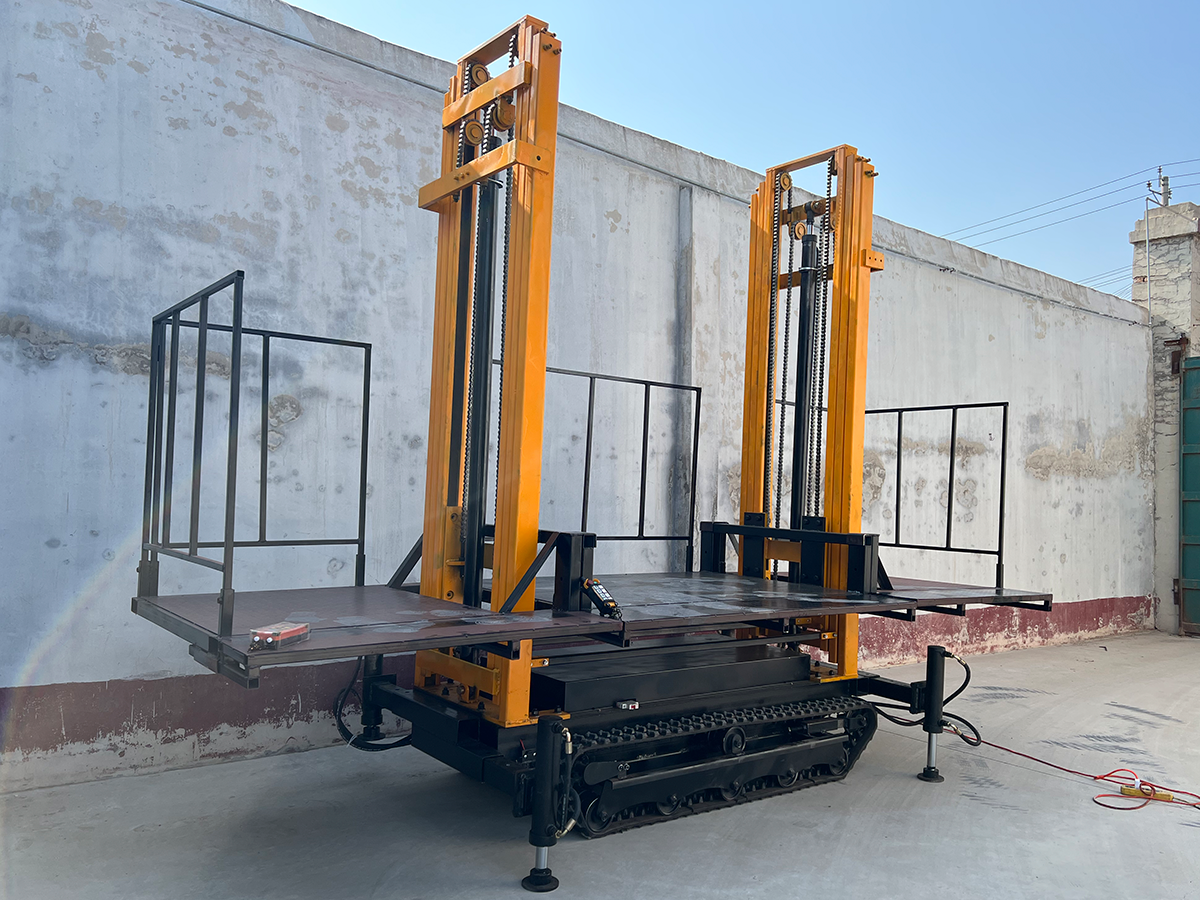

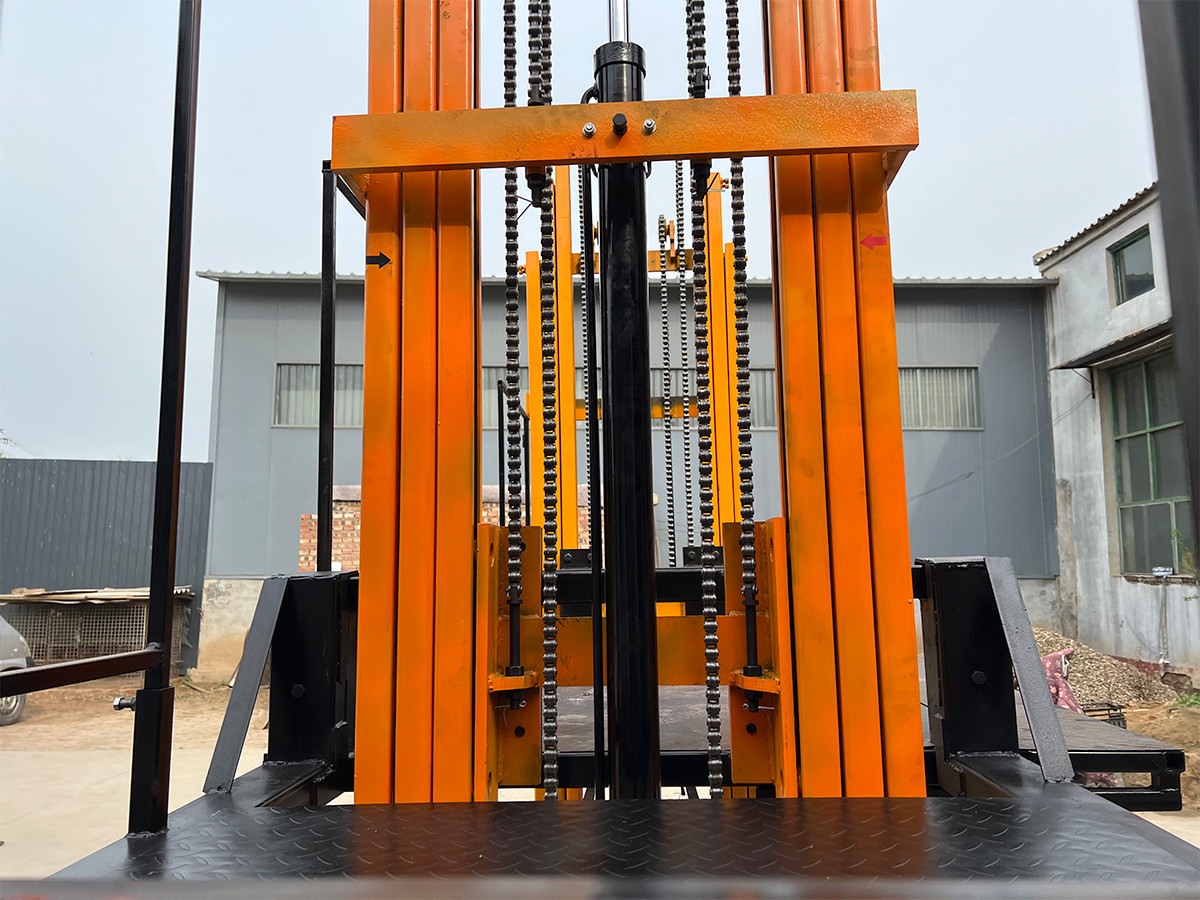

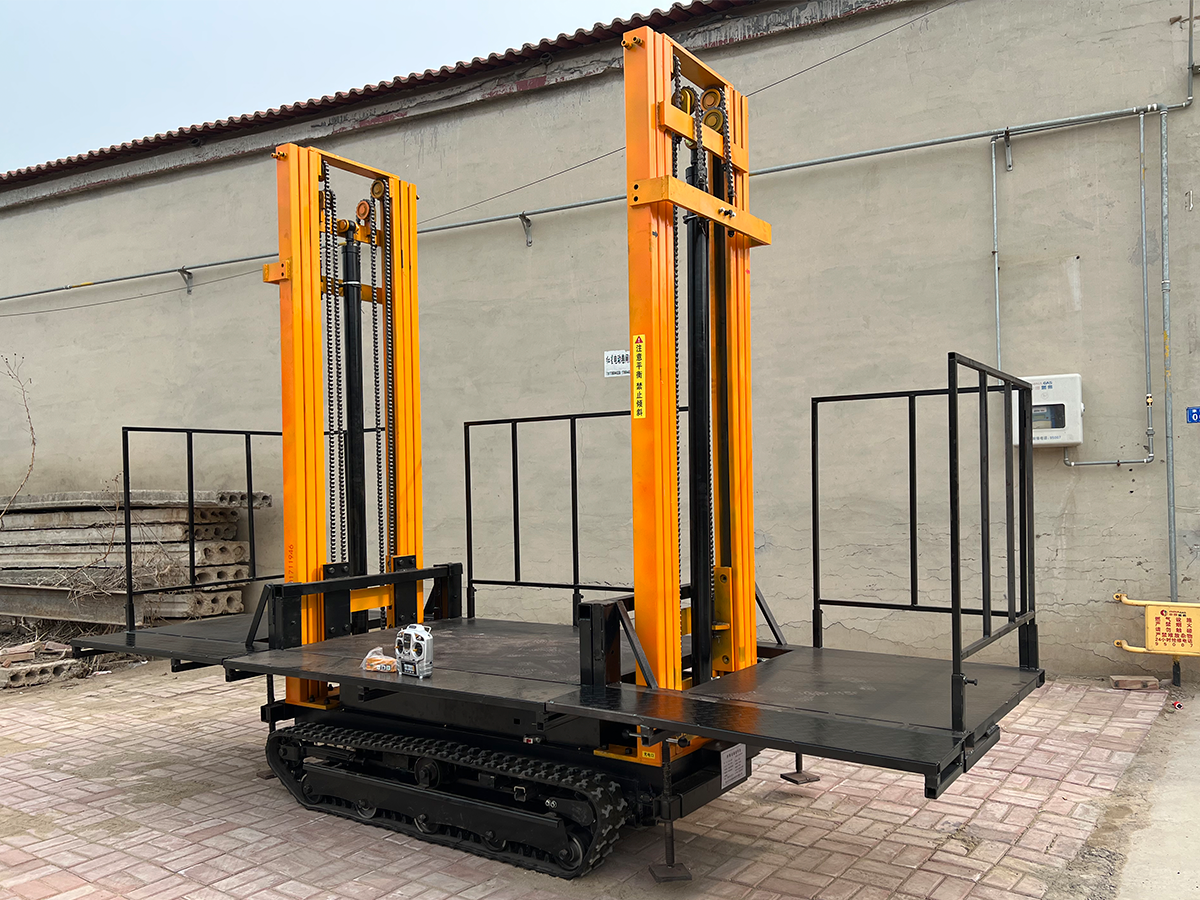

Masonry hydraulic lifting platform (crawler type)

Related Products

	4m platform	6m platform	8m platform	8m platform
Platform size	41.351.85	41.352.9	41.352.9	41.753.4
Platform load	1 ton	1 ton	1 ton	1 ton
Machine weight	1.3 tons	1.55 tons	1.75 tons	2 tons
Lifting motor brand	Huasheng	Huasheng	Huasheng	Huasheng
Lifting motor voltage	220v	220v	220v	220v
Lifting motor power	2.2KW	2.2KW	2.2KW	2.2KW
Travel motor brand	Yuhui
Travel motor power	1500w/48v*2	1500w/48v*2	1500w/48v*2	1500w/48v*2
Hydraulic cylinder brand	Ludwig
Battery Brand	Super Power	Super Power	Super Power	Super Power
Battery Specifications	48v32ah*2	48v32ah*2	48v32ah*2	48v32ah*2
Chassis steel grade	Q235/12 channel steel/10*10 square tube
Lifting gantry steel grade	Q355/10C type 5.0 thick		Q355/10C type 8.0 thick
Overall transport dimensions	2.51.11.86	2.51. 12.9	2.51.22.9	2.51.33.4

Product name: Hydraulic masonry lifting platform Masonry plastering lifting platform Hydraulic lifting platform Mobile masonry lifting platform....

Product use scenarios: construction site Airport Factory Factory area Decoration industry Rental industry Warehouse....

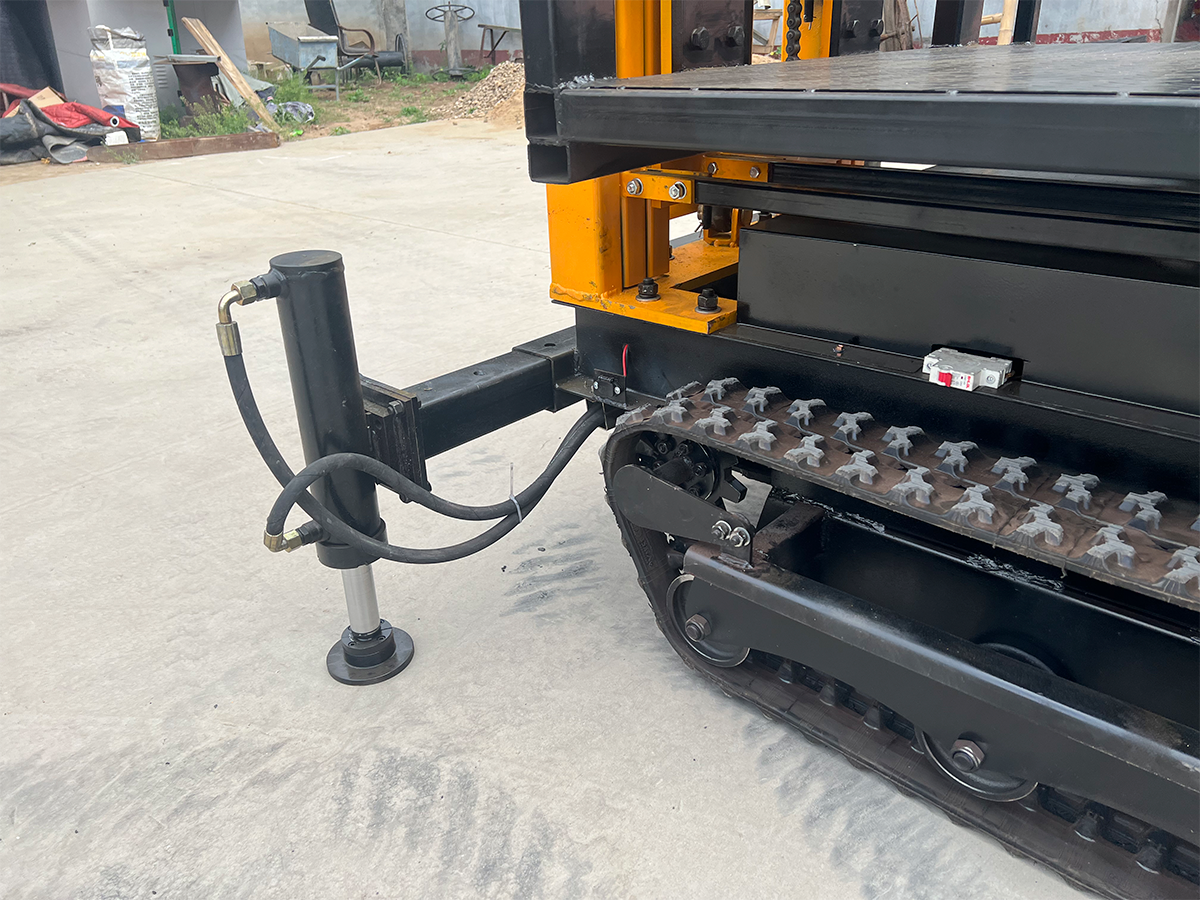

Product accessories: Tire (located at the bottom of the machine walking wheel) Bar part (located on both sides of the keyhole at the front of the machine) Chain (located on the inside of the machine door frame) Cylinder (retractable hydraulic rod located in the center of the door frame)
Remote control (the machine is equipped with two, wireless remote control, wired remote control located on the bottom side of the machine)

If you don’t understand, please call: 1528903273

Masonry hydraulic lifting platform (tire-type walking)
