electric stacker

All Product Categories

electric stacker

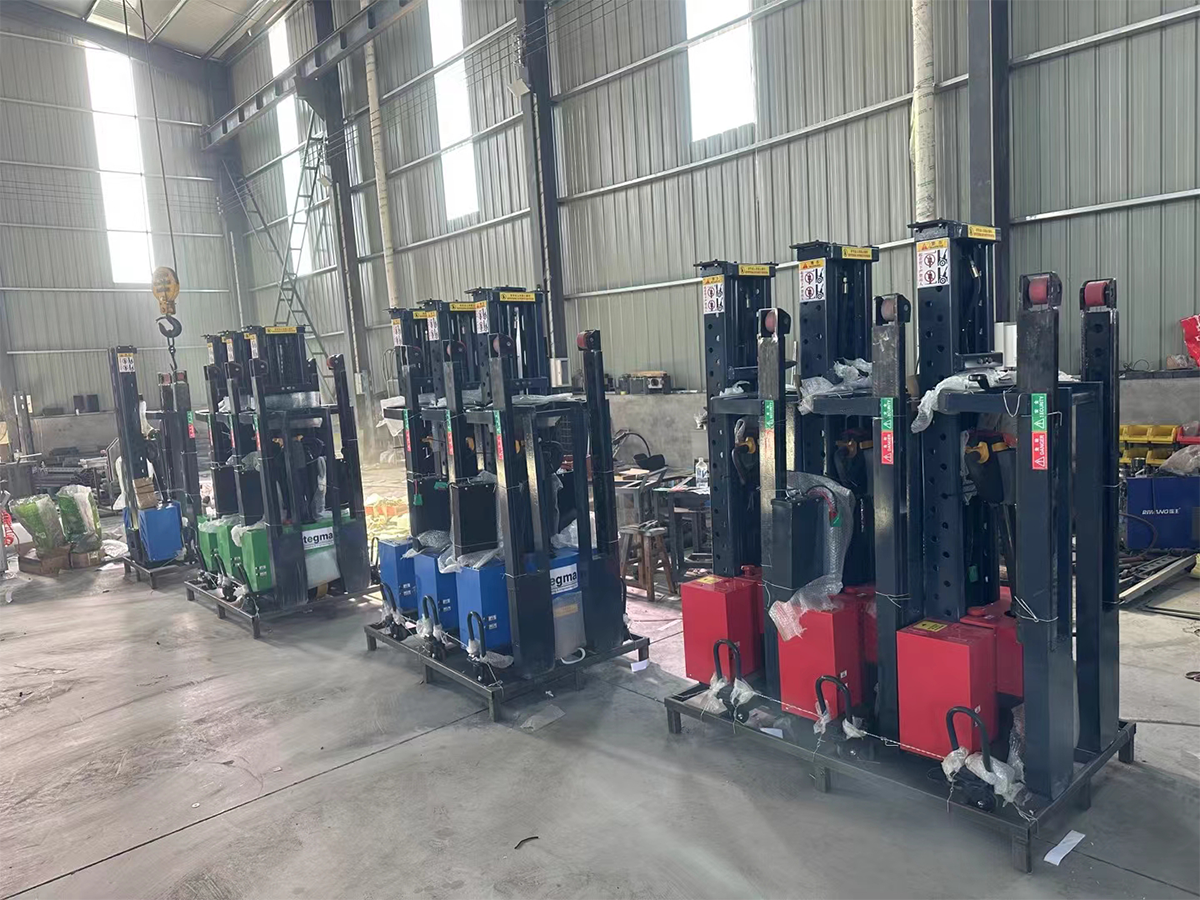

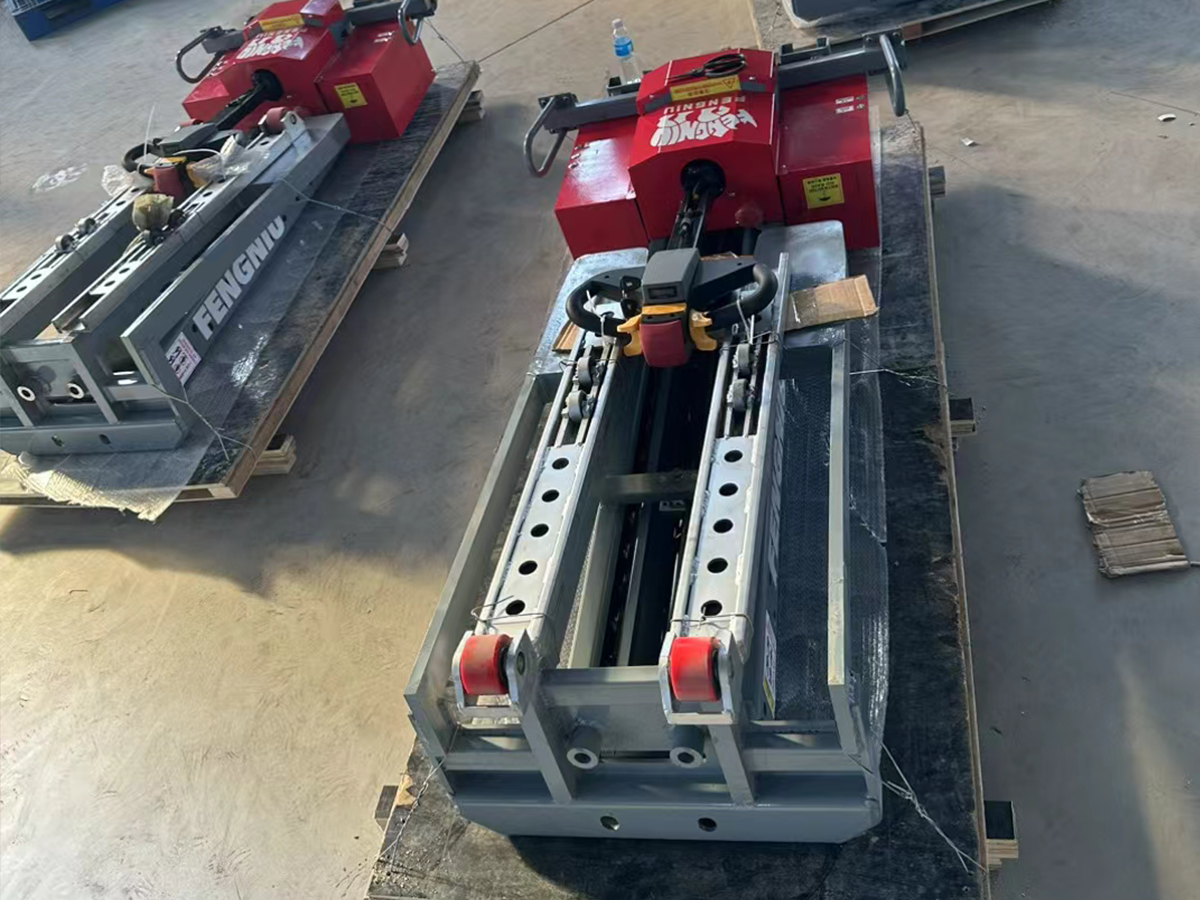

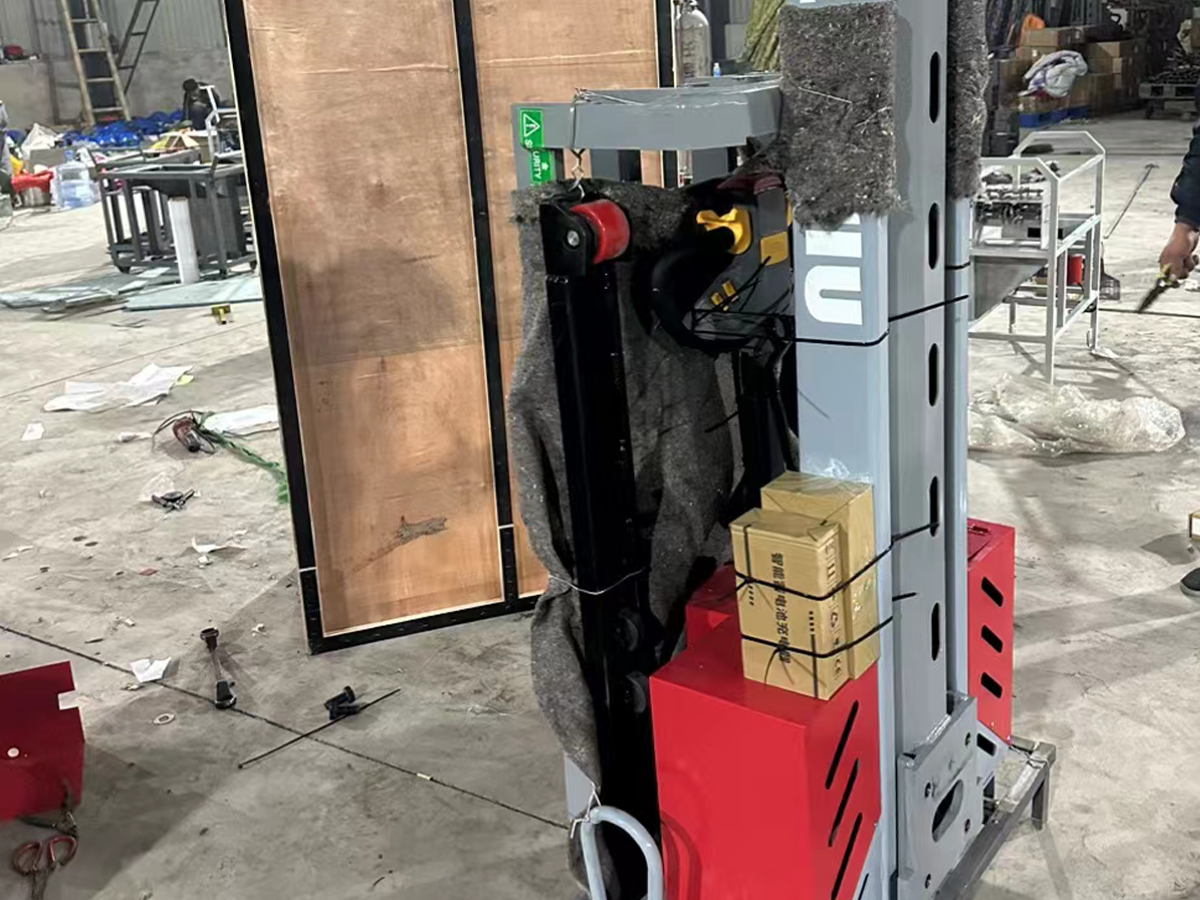

Smart & Customizable Lifting Solutions As a professional manufacturer, we offer high-efficiency Electric Stackers with various models (1.0T-3.5T) and lifting heights (1.6m-6m) to fit different warehouse needs. Why Choose Us? ✔ Compact & maneuverable design for narrow aisles ✔ Lithium/lead-acid battery options available ✔ Fully customizable (fork size, mast type, control system) OEM/ODM services available to meet your specific requirements. Upgrade your material handling with our electric stackers today!

product	1.5M- 1T (Lifting height 1.5 meters/load 1 ton	1.3M-1T (lifting height 1.3 meters/load capacity 1 ton)	1.1M-1T (lifting height 1.1m/load 1 ton)
Lifting height	1500mm	1300mm	1100mm
Maximum lifting weight	1000kg.	1000kg	1000kg
Load base	500mm	500mm	500mm
gross weight	460kg	460kg	460kg
Driving Mode	Multifunctional handle	Multifunctional handle	Multifunctional handle
Lifting Type	Hydraulic drive	Hydraulic drive	Hydraulic drive
Height (bottom floor)	1850mm	1650mm	1450mm
High (top floor)	3280mm	3080mm	2880mm
Overall length	1670mm	1670mm	1670mm
Overall width	900mm	900mm	900mm
Fork length	1190mm	1190mm	1190mm
Mast height	1500mm	1300mm	1100mm
Fork total width	615mm	615mm	615mm
Fork inner width	225mm	225mm	225mm
Fork thickness	70mm	70mm	70mm
Electric Motor	0.75kw	0.75kw	0.75kw .
Lifting motor	1.2kw.	1.2kw	1.2kw
Turning Radius	1510mm	1510mm	1510mm
Battery capacity	55Ah	55Ah	55Ah
Battery voltage	24V	24V	24V
Charging voltage	1 10V-220V	1 10V-220V	1 10V-220V
Fast charge voltage	Continuously variable transmission	Continuously variable transmission	Continuously variable transmission
刹车方式	Electromagnetic brake	Electromagnetic brake	Electromagnetic brake
